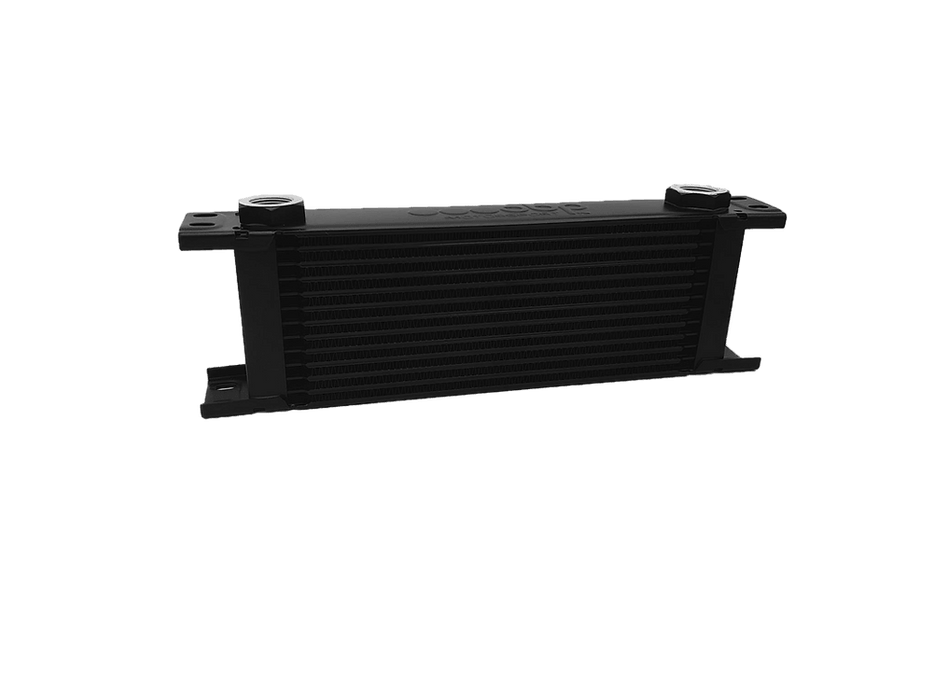

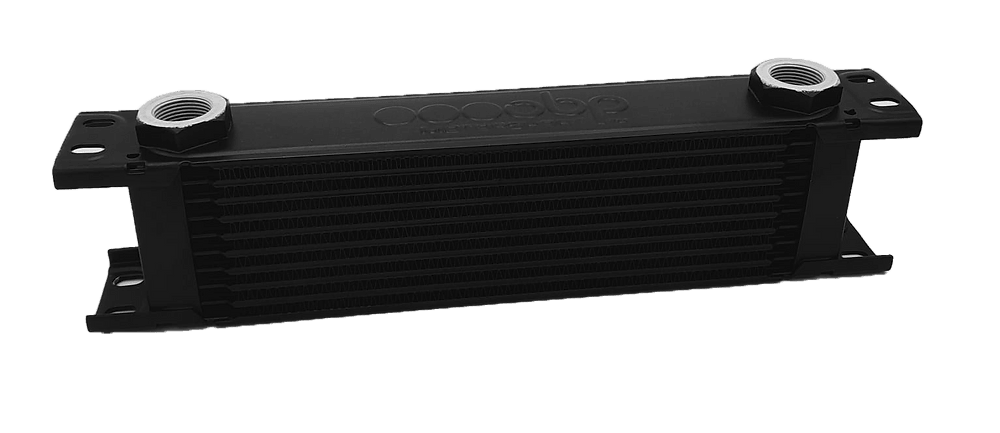

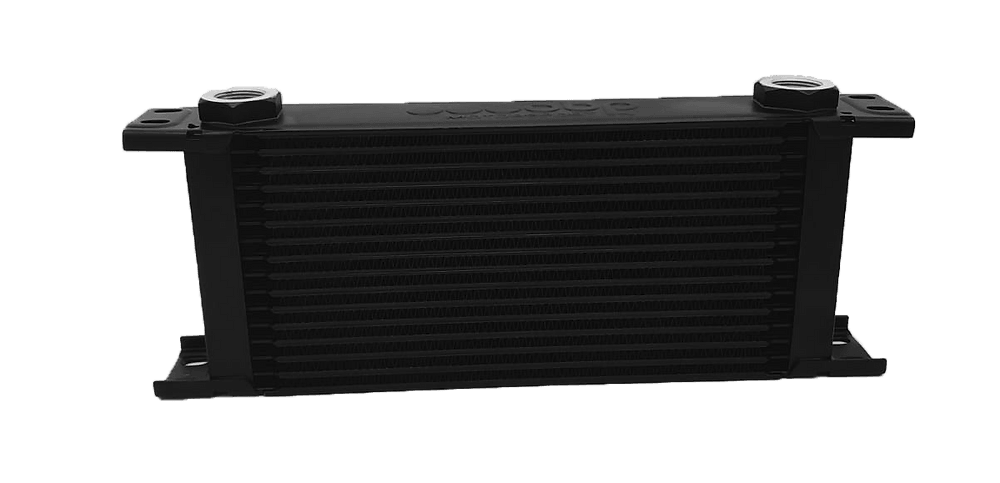

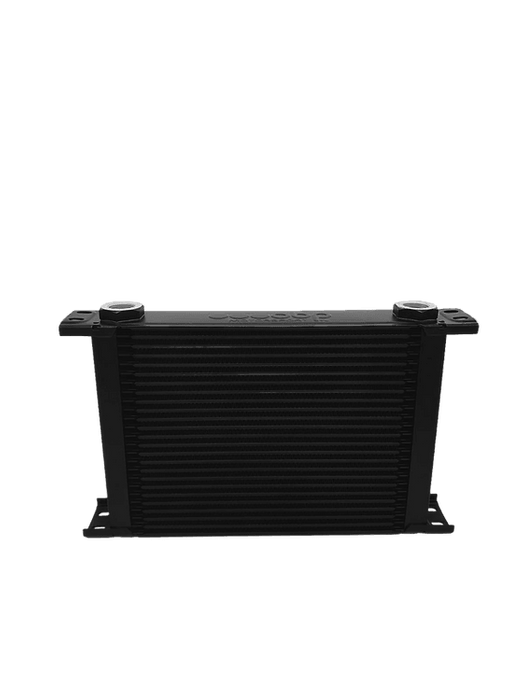

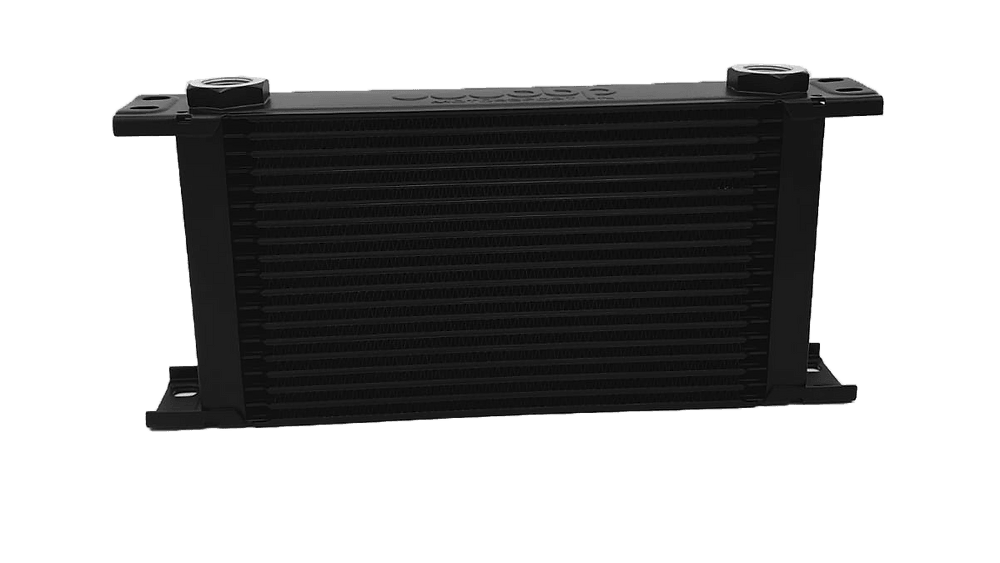

obp Performance Oil Coolers with M22 Female Ports (235 Matrix) - Black

The latest launch for obp Motorsport comes the lightweight performance Oil Coolers. These units are designed to cool the engine oil by using air flow on the fins - making them perfect for competition vehicles requiring optimal performance. We have several options available that meet you requirements with additional options of M22 Adaptors to fit.

Technical Spec

Working Pressure: 0-145 psi (0 - 10Bar)

Max Pressure: 170 psi (12 Bar)

Burst Pressure: 535 psi (37 Bar)

Testing Pressure: 145 psi (10 Bar)

Leak Test Pressure: 60psi (4 Bar)

Working Temperature: -40° to 150°C

Oil Cooler Dimensions

10 Row:

Distance between hole centres: 242mm

Height: 78 mm

Length: 330 mm

Depth: 50 mm

Weight: 0.79kg

13 Row:

Distance between hole centres: 242mm

Height: 100 mm

Length: 330 mm

Depth: 50 mm

Weight: 1.03kg

16 Row:

Distance between hole centres: 242mm

Height: 125 mm

Length: 330 mm

Depth: 50 mm

Weight: 1.26kg

19 Row:

Distance between hole centres: 242mm

Height: 146 mm

Length: 330 mm

Depth: 50 mm

Weight: 1.47kg

25 Row:

Distance between hole centres: 242mm

Height: 195 mm

Length: 330 mm

Depth: 50 mm

Weight: 1.76kg
